Dupengda

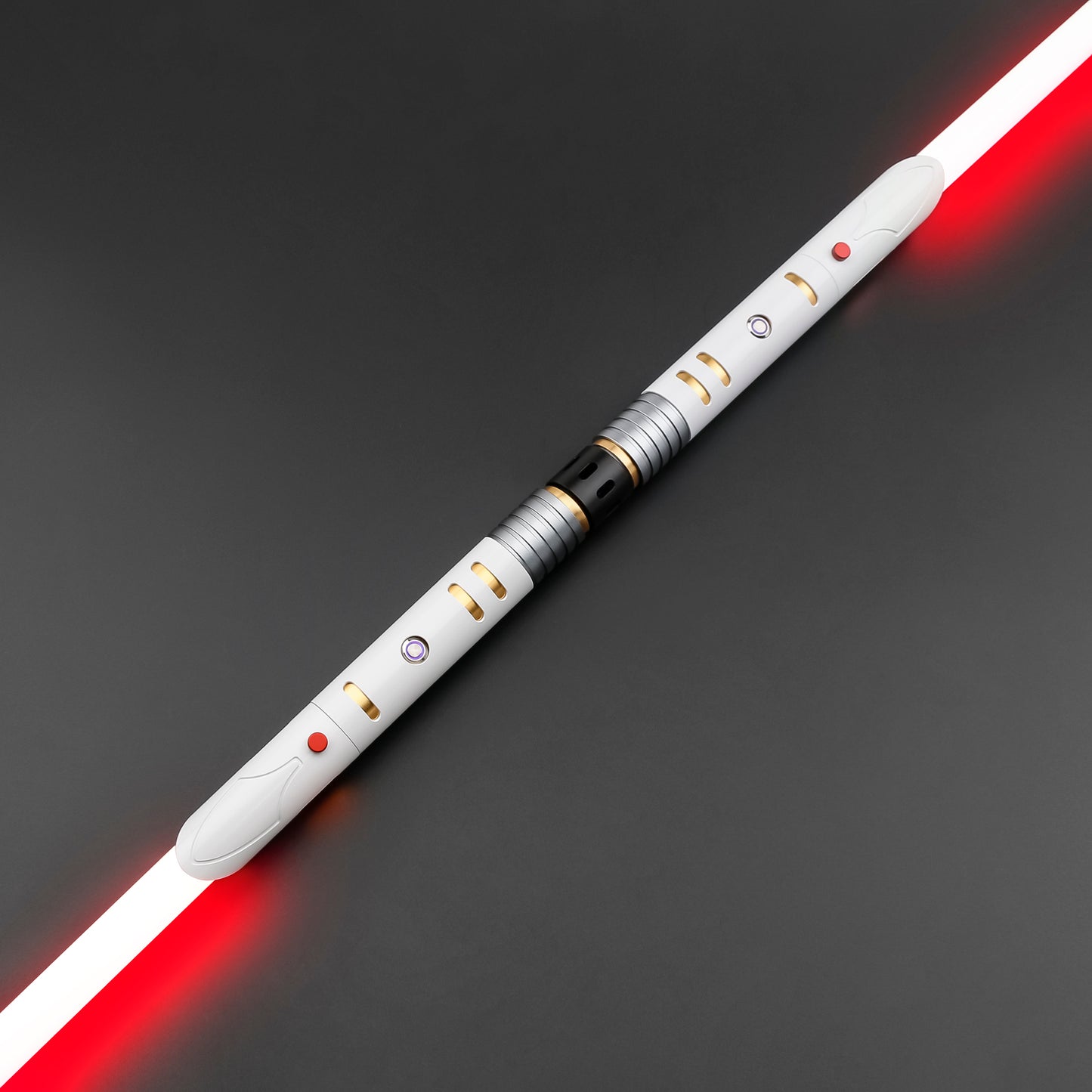

Guard Lightsaber

Guard Lightsaber

Regular price $350.00 USD
Regular price Sale price $350.00 USD
Sale Sold out
Shipping calculated at checkout.
样式
颜色

RGB vs XENOPIXEL


Function RGB Upgrade XENO Pixel 3.0
 Sound effects 16 sets 27sets/34 sets
Color change 16 kinds + infinitely variable colors 16 kinds + infinitely variable colors
Light effects 3 kinds 8 kinds
Power on animation 3 kinds (two of them can be turned on by default off) 12 kinds (5 of them can be turned on by default off)
Specific switch mode Rotary switch, push-pull switch, swing switch, button Rotary switch, push-pull switch, swing switch, push button
Battery capacity/specification 3000mA 3600mA
Blade specification 82/92cm, 2mm wall thickness 82/92cm, 2mm wall thickness
Blade mode Normal light / micro-flash / burst flash Stable light effect, pulse light effect, rainbow light effect, candy light effect, unstable mode, crack blade, flamer mode, flash mode
SD card Yes Yes
DIY Support(New sound/parameter adjustment, etc.) Support cell phone control(New sound effects/parameter adjustment, etc.)
Blade material PC PC
Packing list Instruction manual, charging cable (without charging head), tools Bag, blade, handle Instruction manual, charging cable (without charging head), tool kit, blade, handle, card reader, sword frame, sword sieve



Method of use

When Saber Blade is on When Saber Blade Is Off
Control Effect Control Effect
Hold button and clash hilt Lock UP Button LED flash one time
(Hold button 0.5 seconds)
Adjust Volume
Button LED flash one time
(Hold button 0.5 seconds)
Drag Button LED flash two times
(Hold button 1 second)
Change Light Effect
Button LED flash two times
(Hold button 1 second)
Infinite Color Change Button LED flash three times
(Hold button 1.5 seconds)
Change Blade Mode
Button LED flash three times
(Hold button 1.5 seconds)
Turn Off Saber Button LED flash four times
(Hold button 2 seconds)
Change to last Font
Point down hilt,
hold the button and twist
(Counterclockwise and then clockwise)
Standard Color Change Point down the hilt and twist
Counterclockwise and then clockwise)
Change to Next Font
Point down hilt,
hold the button and twist
(Clockwise and then counterclockwise)
Twist Color Change point up hilt and twist
(counterclockwise and then clockwise)
Play Music
point up the hilt,
hold button and twist
(Clockwise and then counterclockwise)
Force Effect
Click button Blaster/Blaster Deflect
Thrust the hilt forward Stab
spin the hilt quickly Spin
Hold button, and stab hilt
(Twist to change melt color)
Melt
Hold button and pull hilt inwards Lightning Block
Enter into LOCK UP first,
Then button LED flash one time
(Hold button 0.5 second)
Multi Lock Mode
hold button and swing saber
(Same control to exit mode)
Multi Block Mode
Hold button 10 seconds
(After saber blade is off)
Deep Sleep/Deactivate Saber
Hold button 10 seconds
(When saber blade is off)
Pixel to RGB/RGB to Pixel

Troubleshooting

① saber still doesn't start after charging?
Remove the battery and check the battery contact
plates, to ensure they are making contact. Gently bend
them out if they are not making contact, reinsert the
battery, and turn on the saber if there is no response
charge again. (if possible, use an external charger).
② Saber has no swing, hum, or clash sounds?
Usually, this is from low battery power. Charge the saber
for. hours. In Xeno, ensure files are set up on the micro SD
card, and ensure the micro SD card is seated properly
③ Saber stops working suddenly?
Remove the battery and check the contact plates.
Reinsert the battery, charge the saber, and try again. lf
If there is no response, contact your seller.
Saber is hot near the emitter?
it is normal for the LED in the emitter to generate heat.
but the emitter should diffuse most of the heat. As such
please do not turn on the electronics outside of a hill, as
the heat may damage the chassis without the aluminum
emitter to diffuse the heat.
